Bicor™ MB866 - Oriented Polypropylene Film
FLEXIBLE PACKAGING PRODUCT DATA SHEET
Product Description

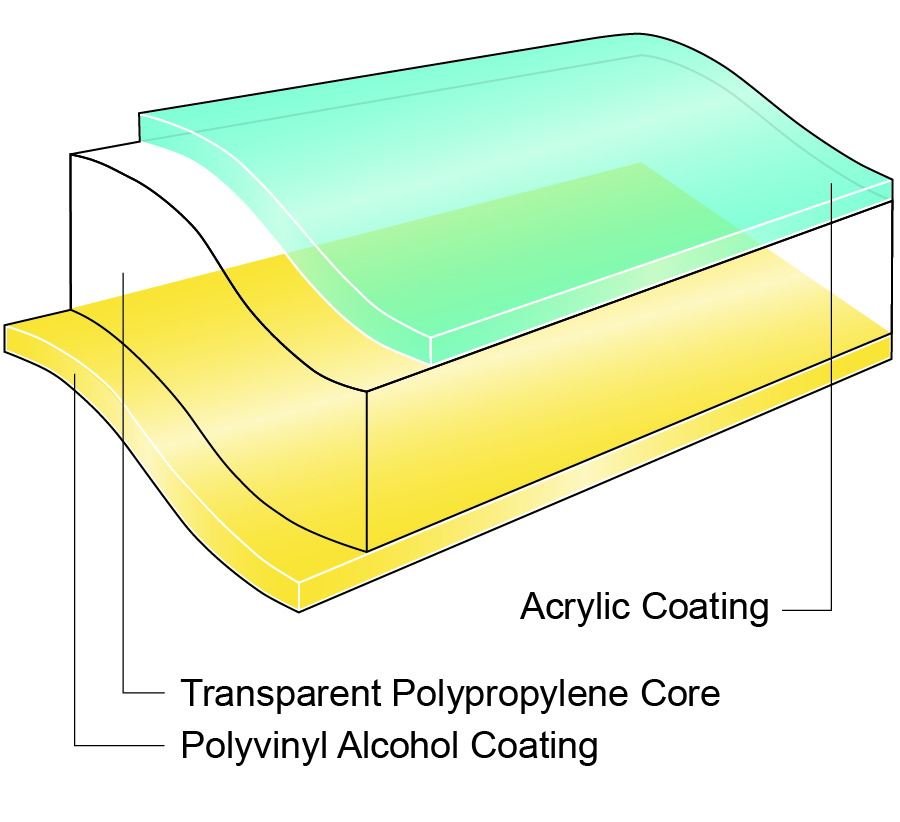

Bicor™ MB866 is a high gas barrier, transparent biaxially oriented polypropylene film, coated one side acrylic, one side PVOH. It provides excellent gas and aroma protection and is designed to be used as the outer web in modified atmosphere applications for dry products.
Key Features
- Exceptional gas and aroma barrier
- Outstanding optical properties
- Ideal support for normal ink systems
- Water based coatings
- Improved barrier to Mineral Oils compared to non-barrier film (1)
- Significant mineral oils contamination protection period of more than 2 years
Properties & Typical Values
Properties | Unit | 21MB866 | Test Method |
---|---|---|---|
Yield | m²/kg | 55.5 | ITM 01 |
Unit Weight | g/m² | 18.0 | ITM 01 |
Film Thickness | µm | 20 | ITM 02 |
Gloss (45°) | Gloss Units | 90 | ITM 14 |
Haze | % | 1.0 | ITM 06 |
Tensile Strength at Break - MD|TD 200 mm/min pull rate, 120 mm jaw separation | Mpa | 135|275 | ITM 50 |
Dimensional Stability 135°C / 275°F, 7 min - MD|TD | % | -5.0 | ITM 37 |
Elongation at Break - MD|TD 200 mm/min pull rate, 120 mm jaw separation | % | 200|65 | ITM 50 |
Minimum Sealing Temperature (Min 300g/25mm) - 25N/cm2 - 0,5 sec - Flat/Flat Acrylic/Acrylic | °C | 95 | ITM 26 |
Heat Seal Range (RDM) - Acrylic/Acrylic RDM - 25N/cm² - 0.5 sec - Flat/Flat | °C | 55 | ITM 26 |
Coefficient of Friction - Acrylic Surface | 0.25 | ITM 20 | |
Water Vapor Transmission Rate - 38°C, 90% RH | g/m²/24 hr | 5.0 | ITM 46 |
Oxygen Transmission Rate - 23°C, 0% RH | cm³/m²/24 hr | 0.50 | ITM 42 |
Typical values should not be construed as finished product specifications (FPS).
Market Segments
- Biscuits/Cookie/Crackers
- Crisps and Snacks
- Dry Foods and Beverage Powders
- Pet Food
Applications
- HFFS Flexible Packaging
- VFFS Flexible Packaging
Processing Method
- Inner Web Adhesive Lamination
- Outer Web Adhesive Lamination
- Solvent Flexographic Printing
- Solvent Rotogravure Printing
Food Contact
Any further regulatory information on this product (i.e. Food Contact application, Presence/absence of substances, Reach, …) are accessible on the below link: http://www.jindalfilms.com/login-register-docmg/
